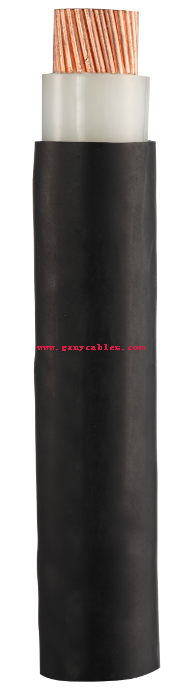

广州南洋电缆有限公司ZC-YJV-0.6∕1kV-1×120交联电缆

一、产品特点及用途Product features and uses

本产品适用于额定电压1KV（Um=1.2KV）的配电网或工业装置中。

This product is applicable for the ratedvoltage 1kV(Um =1.2kV) power distribution network or industrial equipments.

产品标准Product standards:GB/T 12706.1、GB/T 19666

二、产品使用特点Product Usage Characteristics

1、  额定电压UO/U为0.6/1KV,

Rated voltage UO/U is 0.6/1KV

2、  电缆导体的长期工作温度等级为70℃

Conductor temperature allowd during long term operation is 90℃

3、短路时（最长持续5秒S）,导体最高温度不超过250℃。

When max short circuit in 5s, maxconductor temp not exceed 250℃.

4、  电缆敷设温度应不低于0℃

Installation temperature is not lower than0 and

5、电缆安装时的最小允许弯曲半径见下表。

Min bending radius allowed is as below.

( D-the diameter of cable )

5、电缆安装时的最小允许弯曲半径见下表。

Min bending radius allowed is as below.

( D-the diameter of cable )

电缆安装时的最小弯曲半径Minimumbending radius when cable installed

6、敷设条件Installation condition

(1)空气中电缆敷设在阴影处，环境温度为40℃；土壤中电缆直埋深度为700mm,土壤热阻系数为1.0k.m/w，环境温度为25℃。

When cable being laid under shade inair, the ambient temperature is 40℃; If cable is buried in soil depth of1000mm soil thermal resstivity is 1.2km/w, and the ambient temperature is 25℃.

（2）单芯电缆三根水平平行敷设及星形敷设时，中心间距均为一倍电缆外径；多芯为单根敷设。

When three of single core cables laid inparallel and star-laying, the center of the pitch are doubled of the cablediameter; multi-core cable is laid individually.

载流量修正系数Correction coefficientof rating current
